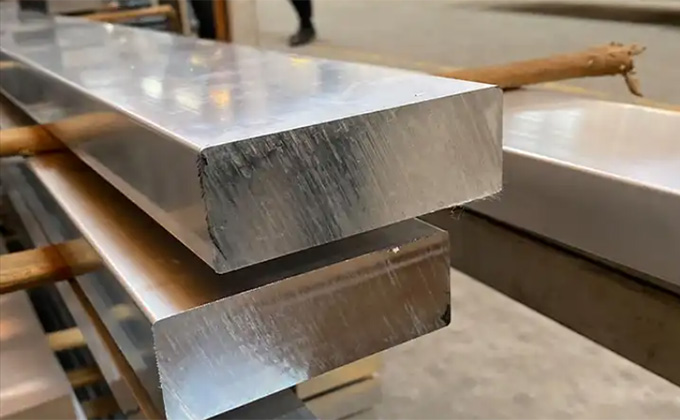

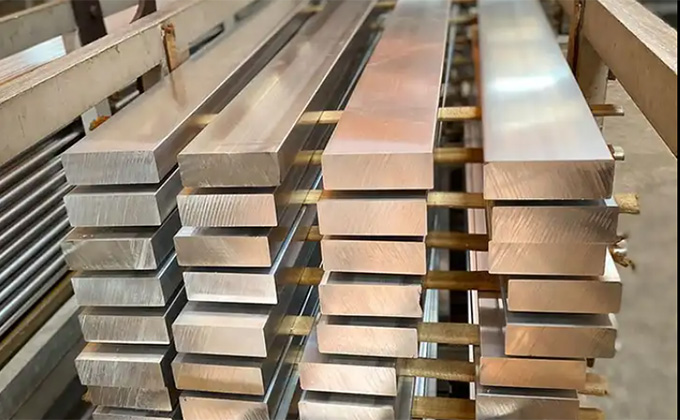

Aluminium Busbar (or aluminum flat bar) is a flat, rectangular conductor widely used in power distribution systems to replace traditional cables. Made from high-grade aluminum alloy, our busbars ensure low electrical resistance, lightweight design and superior corrosion resistance.

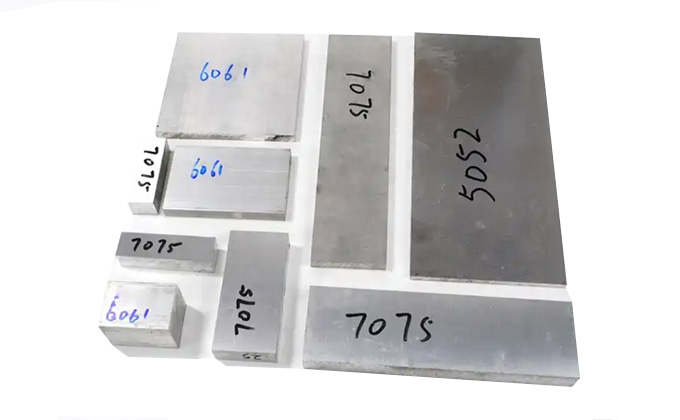

1060 Aluminium busbar and 6061 aluminium busbar

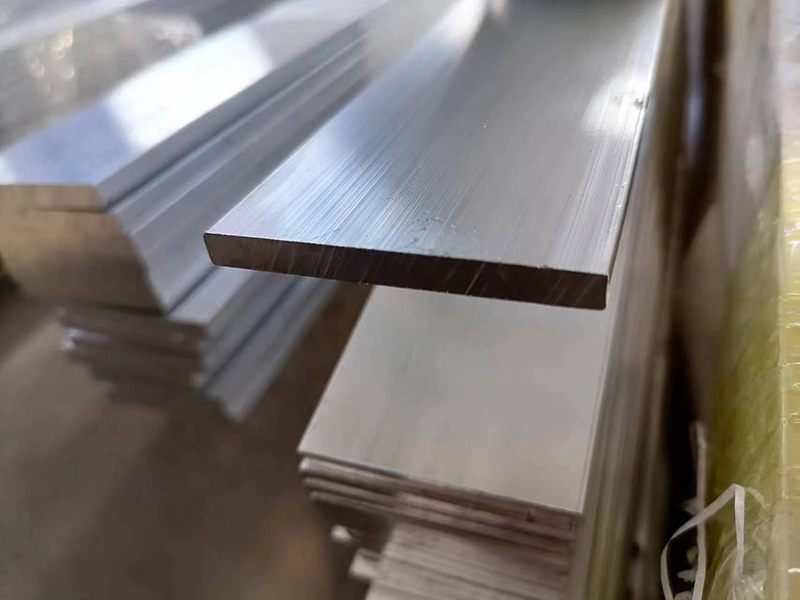

1060 aluminum busbar
Composition: 99.6% pure aluminum, simple chemical composition.

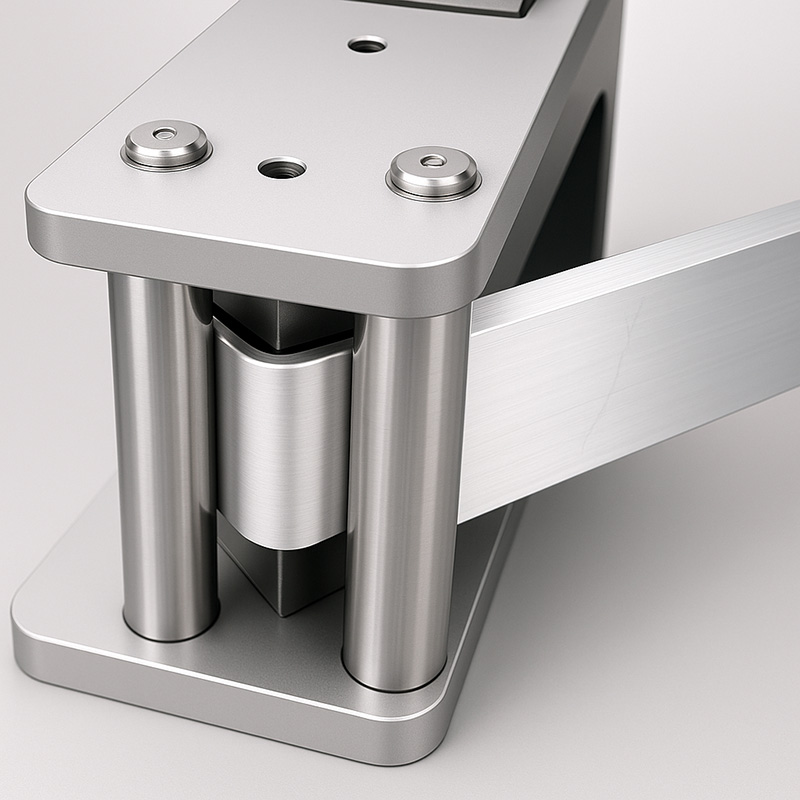

Performance: high conductivity and ductility, can be bent 90 degrees without cracking, low mechanical strength.
Application: power distribution cabinets, electrical cables and other power equipment.

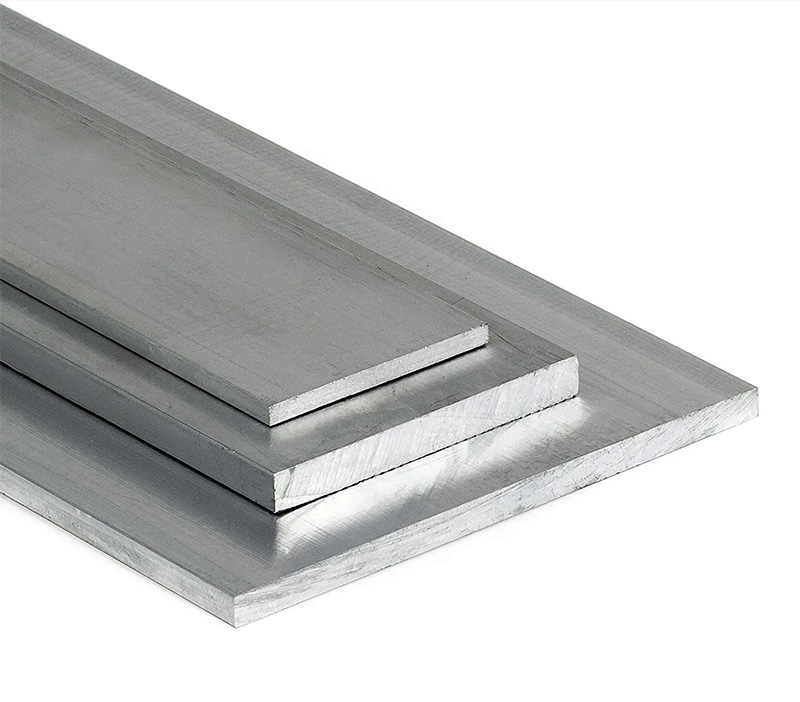

6061 aluminum busbar
Composition: aluminum alloy, containing silicon and magnesium.
Performance: high strength and toughness; excellent processability and corrosion resistance.
Application: power, industrial structural parts, etc.

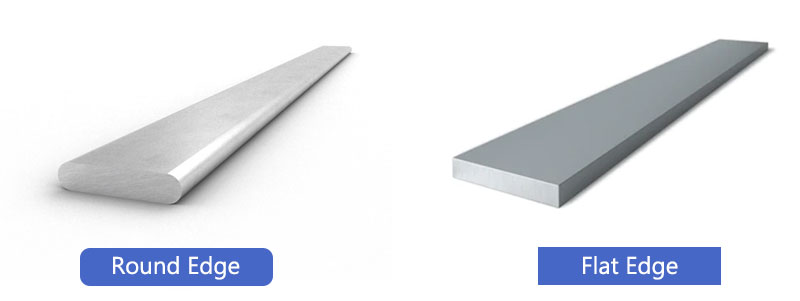

Round Edge and Flat Edge Aluminium Busbars
Aluminum busbars can be divided into two types based on their appearance: round Edge and flat Edge.

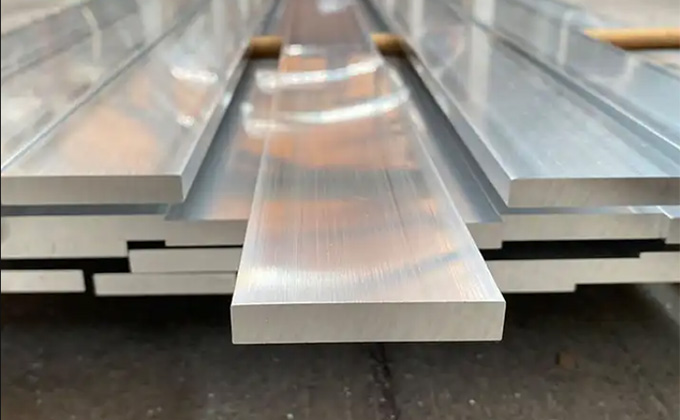

Round edge aluminum busbars have a curved transition that reduces electric field concentration and mechanical stress, making them suitable for high-frequency or anti-corrosion applications. Flat edge aluminum busbars, with their 90-degree corners, have a simple structure and low cost, commonly used for standard electrical connections.
Benefits of aluminium busbars
Superior Conductivity
Material : 1060/6061 aluminum alloy (conductivity: ≥55 MS/m).
Low Resistance : Minimizes energy loss in high-current applications.
Light weight & Durable
50% lighter than copper—reduces structural load and installation costs.
Surface Options
Bare, tin-plated, or anodized for corrosion resistance.
Applications of aluminium busbars

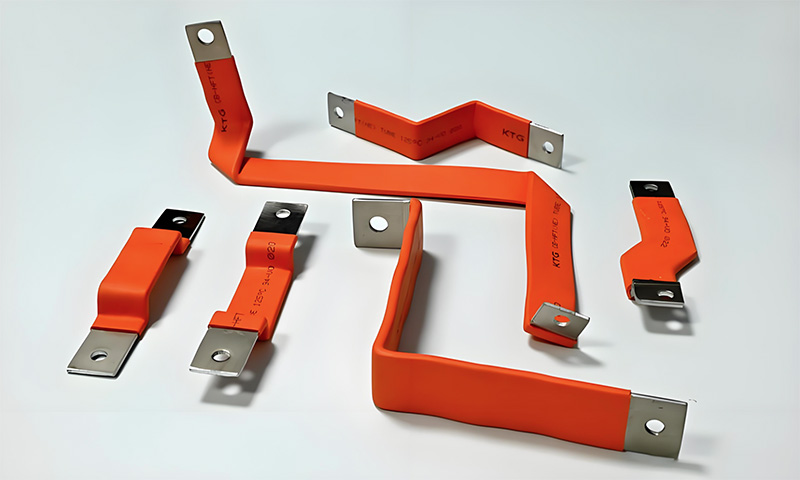

✅ Renewable Energy : Solar inverters, battery storage systems.

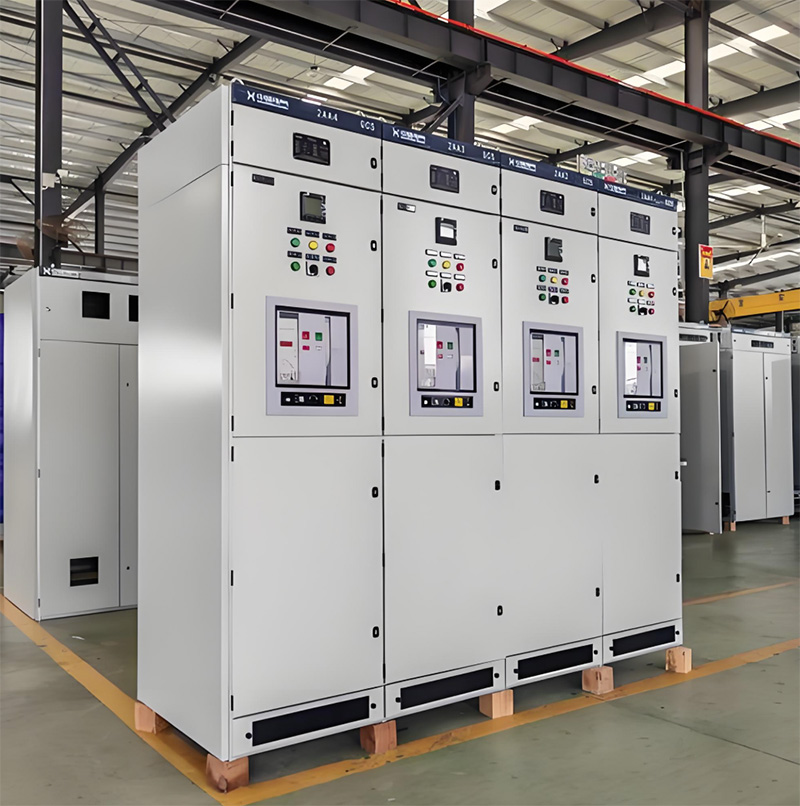

✅ Industrial Equipment : Switchgear, transformers, power distribution cabinet,circuit breakers.

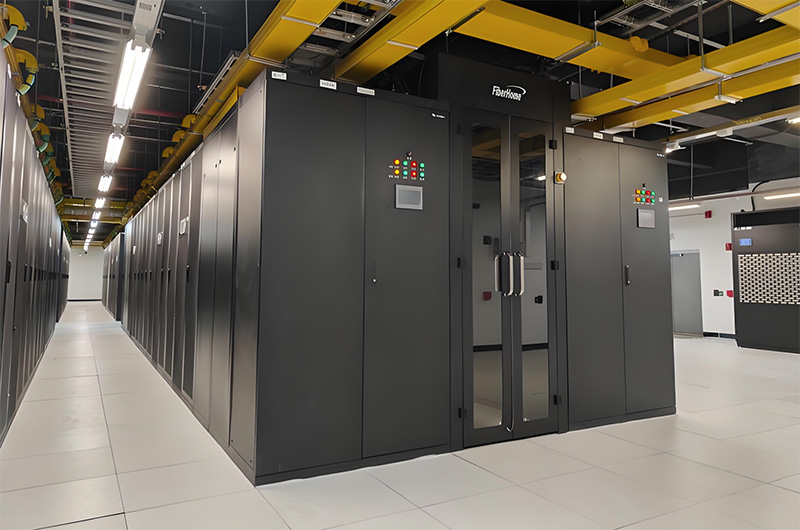

✅ Data Centers & Rail : High-current power transmission.
Why Choose Us?
Global Export
Shipped to 50+ countries (EU, USA, Middle East).

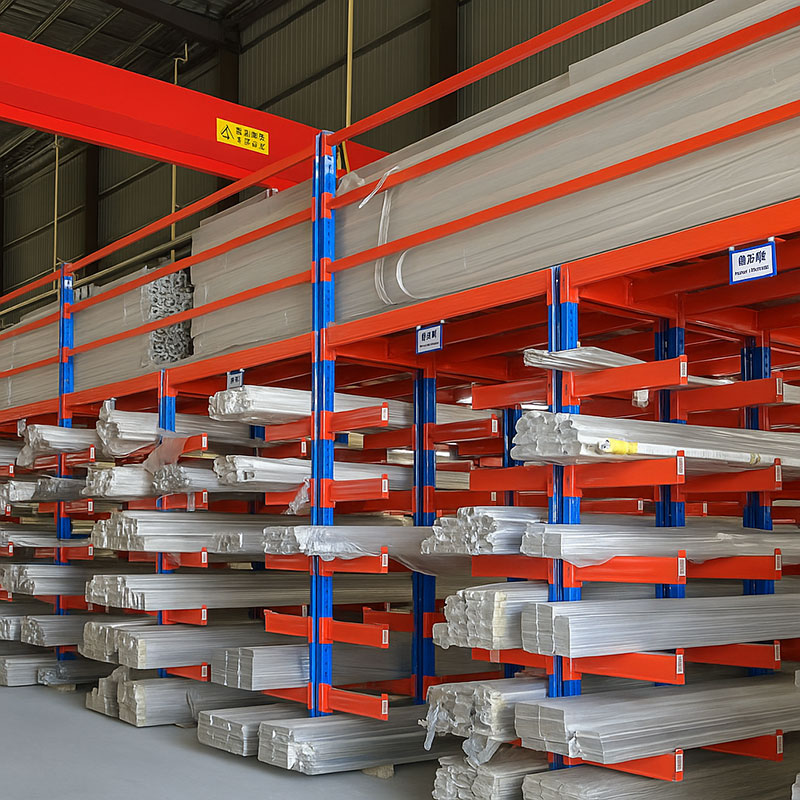

Large inventory
We have a large number of common models and sizes in stock and can be purchased and shipped at any time.
Quality Assurance
Professional production personnel, rich production experience, advanced equipment and strict quality inspection procedures ensure high-quality products.
Fast delivery

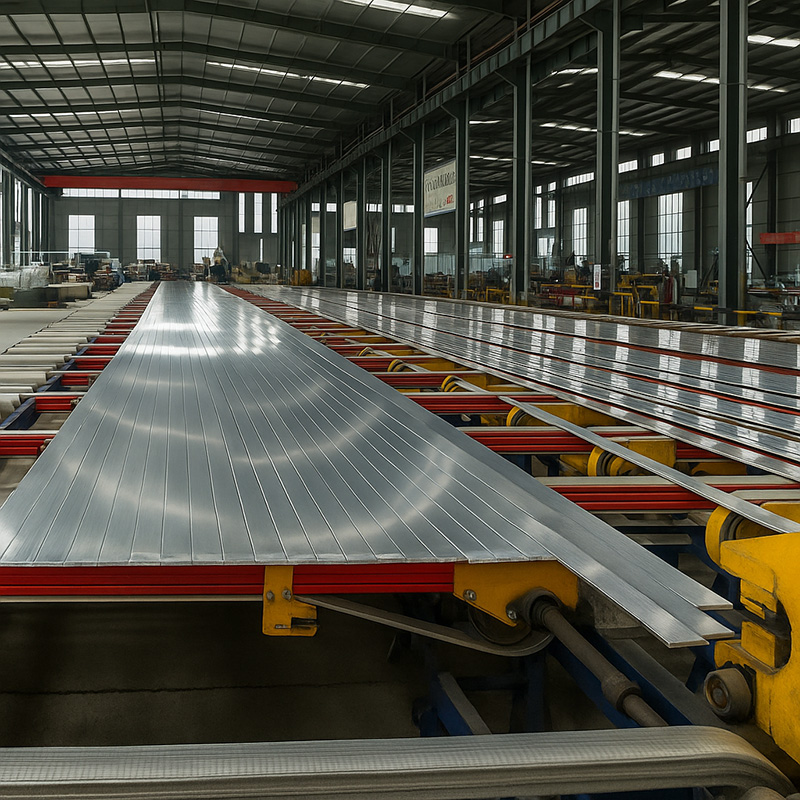

There are 7 advanced production lines with a monthly output of 600 tons to ensure fast delivery.
Parameter
Size (width*thick) mm*mm | 25℃ (AC) | 30℃ (AC) | 35℃ (AC) | 40℃ (AC) |
15 x 3 | 165 | 155 | 145 | 134 |
20 x 3 | 215 | 202 | 189 | 174 |
25 x 3 | 265 | 249 | 233 | 215 |
30 x 4 | 365 | 343 | 321 | 296 |
40 x 4 | 480 | 451 | 422 | 389 |
40 x 5 | 540 | 507 | 475 | 438 |
50 x 5 | 665 | 625 | 585 | 539 |
50 x 6.3 | 740 | 695 | 651 | 600 |
63 x 6.3 | 870 | 818 | 765 | 705 |
80 x 6.3 | 1150 | 1080 | 1010 | 932 |
100 x 6.3 | 1425 | 1340 | 1255 | 1155 |
63 x 8 | 1025 | 965 | 902 | 831 |
80 x 8 | 1320 | 1240 | 1160 | 1070 |
100 x 8 | 1650 | 1530 | 1430 | 1315 |
125 x 8 | 1900 | 1785 | 1670 | 1540 |
63 x 10 | 1155 | 1085 | 1016 | 936 |
80 x 10 | 1480 | 1390 | 1300 | 1200 |
100 x 10 | 1820 | 1710 | 1600 | 1475 |
12 x 10 | 2070 | 1945 | 1820 | 1680 |
